• 1.Maximum Electic Rating: 75℃ 600V
    最高溫度: 75℃ 耐壓600V
    2.Maximum Electric Current: (最大電流)
       22-16AWG / 0.5-1.5mm²: 19A
       16-14AWG / 1.5-2.5mm²: 27A
       12-10AWG / 4-6mm²: 48A
    3.Terminal Body: Copper (端子材質: 紅銅)
    4.Insulation: Vinyl (護套材質: PVC)
    5.Plating: Tin(表面處理: 鍍錫)

    VM---Flared Vinyl without copper sleeve

    PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve

Please Click products below, and click Add to Inquiry List for inquiry.

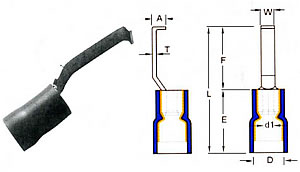

Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包

831318

Lipped Blade Terminals Vinyl Insulated

1.Maximum Electic Rating: 75℃ 600V

2.Maximum Electric Current:
   22-16AWG / 0.5-1.5mm²: 19A
   16-14AWG / 1.5-2.5mm²: 27A
   12-10AWG / 4-6mm²: 48A
3.Terminal Body: Copper
4.Insulation: Vinyl
5.Plating: Tin

VM---Flared Vinyl without copper sleeve

PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve

Red
0.5-1.5mm2 22-16AWG
3.0(.118)/16.5(.649)/27.2(1.071)/10.0(.394)/2.1(.083)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

831418

Red
0.5-1.5mm2 22-16AWG
4.6(.181)/16.5(.649)/27.2(1.071)/10.0(.394)/2.1(.083)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

835318

Blue
1.5-2.5mm2 16-14AWG
3.0(.118)/16.5(.649)/27.2(1.071)/10.0(.394)/2.1(.083)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

835418

Blue
1.5-2.5mm2 16-14AWG
4.6(.181)/16.5(.649)/27.2(1.071)/10.0(.394)/2.1(.083)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

833318

Yellow
4-6mm2 12-10AWG
3.0(.118)/16.5(.649)/30.2(1.189)/13.5(.531)/2.4(.094)/6.4(.252)/3.4(.134)/1.0(.039)
1000/500

833418

Yellow
4-6mm2 12-10AWG
4.6(.181)/16.5(.649)/30.2(1.189)/13.5(.531)/2.4(.094)/6.4(.252)/3.4(.134)/1.0(.039)
1000/500
