• Maximum Electic Rating: 105℃ 300V
      最高溫度: 105℃ 耐壓300V
    • Maximum Electric Current:
      22-16AWG / 0.5-1.5mm2: 10A
      16-14AWG / 1.5-2.5mm2: 15A
      12-10AWG / 4-6.5mm2: 24A
    • Terminal Body: Brass (端子材質: 黃銅)
    • Insulation: Nylon (護套材質: 尼龍)
    • Plating: Tin (表面處理: 鍍錫)

Please Click products below, and click Add to Inquiry List for inquiry.
Insulation Color
護套顏色
Wire Rang mm²/Awg
適用電線
Tab Size 插片規格 Dimmension(mm/inch)
主要尺寸
QTY BOX 包裝量

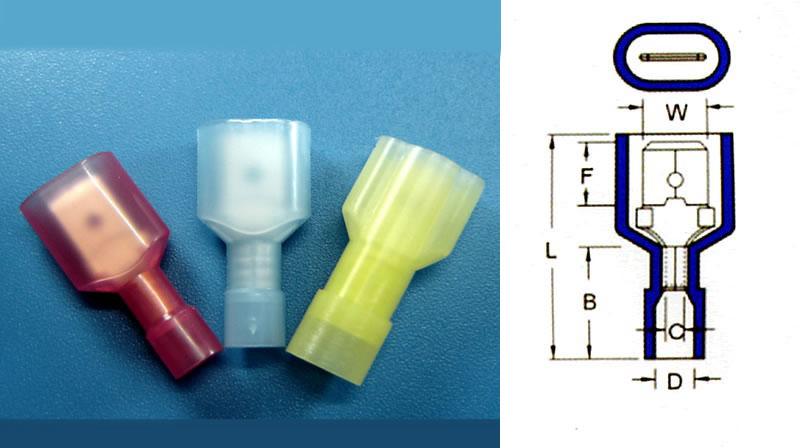

inch mm W F L B D C T

281638FNM

1.Maximum Electic Rating: 75℃ 300V

2.Maximum Electric Current:
   22-16AWG / 0.5-1.5mm²: 19A
   16-14AWG / 1.5-2.5mm²: 27A
   12-10AWG / 4-6mm²: 48A
3.Terminal Body: Copper
4.Insulation: Vinyl
5.Plating: Tin
VM---Flared Vinyl without copper sleeve

PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve

Red
0.5-1.5mm²
22-16AWG
.250*.032 6.35*0.8
6.35(.250)
7.7(.303) 23.0(.906) 11.0(.433) 4.0(.157) 1.7(.067) 0.4(.016)< div>
1000

285638FNM

Blue
0.5-2.5mm²
16-14AWG
.250*.032 6.35*0.8
6.35(.250)
7.7(.303) 24.0(.945) 11.0(.433) 4.5(.177) 2.3(.090) 0.4(.016)< div>
1000

283638FNM

Yellow
4-6mm²
10-12AWG
.250*.032 6.35*0.8
6.35(.250)
7.7(.303) 25.0(.984) 13.0(.512) 6.3(.248) .3.4(.134) 0.4(.016)< div>
1000
