• Material:

    • Terminal Body: Copper (端子材質: 紫銅)
    • Plating: Tin(表面處理: 鍍錫)

Please Click products below, and click Add to Inquiry List for inquiry.
Wire Range mm²/Awg
適用電線
螺栓規格 Dimension(mm/inch)
主要尺寸
Q’TY BOX
包裝量

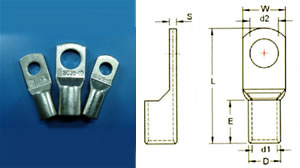

Stud Size d2 W d1 D L E S

CN2.5-4

1.5-2.5mm²
14-16AWG
#8 4.3 8.0 2.4 4.0 19.6
1000

CN2.5-5

1.5-2.5mm²
14-16AWG
#10 5.3 8.0 2.4 4.0 19.6
1000

CN2.5-6

1.5-2.5mm²
14-16AWG
1|4" 6.5 10.0 2.4 4.0 21.0
1000

CN4-4

2.5-4mm²
14-12AWG
#8 4.3 10.0 3.1 4.8 21.0
1000

CN4-5

2.5-4mm²
14-12AWG
#10 5.3 10.0 3.1 4.8 21.0
1000

CN4-6

2.5-4mm²
14-12AWG
1|4" 6.5 10.0 3.1 4.8 21.0
1000

CN6-4

4-6mm²
12-10AWG
#8 4.3 10.0 3.8 5.5 25.0
1000

CN6-5

4-6mm²
12-10AWG
#10 5.3 10.0 3.8 5.5 25.0
1000

CN6-6

4-6mm²
12-10AWG
1|4" 6.5 10.0 3.8 5.5 25.0
1000

CN10-6

10mm²
8AWG
1|4" 6.5 12.6 4.5 6.2 26.5
500

CN10-8

10mm²
8AWG
5|16" 8.4 12.6 4.5 6.2 26.5
500

CN16-6

16mm²
6AWG
1|4" 6.5 12.6 5.5 7.2 29.5
500

CN16-8

16mm²
6AWG
5|16" 8.4 12.6 5.5 7.2 29.5
500

CN25-6

25mm²
4AWG
1|4" 6.5 15.0 7.0 9.0 33.0
200

CN25-8

25mm²
4AWG
5|16" 8.4 15.0 7.0 9.0 33.0
200

CN25-10

25mm²
4AWG
3|8" 10.5 15.0 7.0 9.0 33.0
200

CN35-6

35mm²
2AWG
1|4" 6.5 15.2 8.2 10.6 38.0 14.2 2.5
200

CN35-8

35mm²
2AWG
5|16" 8.4 15.2 8.2 10.6 38.0 14.2 2.5
200

CN35-10

35mm²
2AWG
3|8" 10.5 15.2 8.2 10.6 38.0 14.2 2.5
200

CN50-8

50mm²
1/0AWG
5|16" 8.4 18.5 10.0 13.0 44.5 18.0 2.9
200

CN50-10

50mm²
1/0AWG
3|8" 10.5 18.5 10.0 13.0 44.5 18.0 2.9
200

CN50-12

50mm²
1/0AWG
1|2" 13.0 18.5 10.0 13.0 44.5 18.0 2.9 200

CN70-8

70mm²
2/0AWG
5|16" 8.4 21.4 11.5 15.0 54.2 20.4 3.5
100

CN70-10

70mm²
2/0AWG
3|8" 10.5 21.4 11.5 15.0 54.2 20.4 3.5
100

CN70-12

70mm²
2/0AWG
1|2" 13.0 21.4 11.5 15.0 54.2 20.4 3.5
100

CN95-8

95mm²
3/0AWG
5|16" 8.4 25.5 13.5 17.4 59.0 23.4 3.9
50

CN95-10

95mm²
3/0AWG
3|8" 10.5 25.5 13.5 17.4 59.0 23.4 3.9
50

CN95-12

95mm²
3/0AWG
1|2" 13.0 25.5 13.5 17.4 59.0 23.4 3.9
50

CN120-10

120mm²
4/0AWG
3|8" 10.5 28.3 15.5 19.9 66.7 24.6 4.5
25

CN120-12

120mm²
4/0AWG
1|2" 13.0 28.3 15.5 19.9 66.7 24.6 4.5
25

CN120-14

120mm²
4/0AWG
9|16" 15.0 28.3 15.5 19.9 66.7 24.6 4.5
25

CN120-16

120mm²
4/0AWG
5|8" 17.0 28.3 15.5 19.9 66.7 24.6 4.5
25

CN150-10

150mm²
250/300MCM
1|2" 10.5 31.0 17.0 21.7 74.5 29.5 4.7
25

CN150-12

150mm²
250/300MCM
9|16" 13.0 31.0 17.0 21.7 74.5 29.5 4.7
25

CN150-14

150mm²
250/300MCM
5|8" 15.0 31.0 17.0 21.7 74.5 29.5 4.7
25

CN150-16

150mm²
250/300MCM
11|16" 17.0 31.0 17.0 21.7 74.5 29.5 4.7
25

CN185-12

185mm²
300/350MCM
9|16" 13.0 34.2 19.0 24.0 81.4 32.5 5.0
25

CN185-14

185mm²
300/350MCM
5|8" 15.0 34.2 19.0 24.0 81.4 32.5 5.0
25

CN185-16

185mm²
300/350MCM
11|16" 17.0 34.2 19.0 24.0 81.4 32.5 5.0
25

CN240-14

240mm²
400/450MCM
9|16" 15.0 39.0 21.5 27.0 94.0 35.5 5.5
25

CN240-16

240mm²
400/450MCM
5|8" 17.0 39.0 21.5 27.0 94.0 35.5 5.5
25

CN240-18

240mm²
400/450MCM
11|16" 19.0 39.0 21.5 27.0 94.0 35.5 5.5
25
