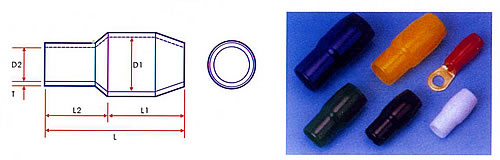

Wire Size (mm)² Dimension(mm) Packing
D1 D2 L L1 L2 T

V-1.25

V-1.25
3.3 3.1 15.0 7.0 8.0 0.6
100

V-2.0

V-2.0
4.5 3.7 16.0 8.0 8.0 0.7
100

V-3.5

V-3.5
5.7 4.1 18.0 9.0 9.0 0.8
100

V-5.5

V-5.5
5.7 5.2 20.0 10.0 10.0 0.8
100

V-8.0

V-8.0
7.2 6.2 21.0 11.0 10.0 1.0
100

V-12

V-12
10.0 7.3 27.0 13.0 14.0 1.1
100

V-14

V-14
10.0 8.0 28.0 15.0 13.0 1.1
100

V-22

V-22
12.0 9.5 29.0 15.0 14.0 1.2
100

V-38

V-38
14.0 11.8 34.0 17.0 17.0 1.4
100

V-60

V-60
17.0 13.9 42.0 22.0 20.0 1.5
100

V-70

V-70
17.9 15.1 45.0 25.5 19.0 1.5
100

V-80

V-80
19.5 16.0 46.0 25.0 21.0 1.5
50

V-100

V-100
22.0 18.0 55.0 31.0 24.0 1.7
50

V-125

V-125
24.4 20.0 60.0 32.0 28.0 1.8
50

V-150

V-150
26.0 22.0 65.0 34.0 31.0 1.8
50

V-185

V-185
29.0 24.0 66.7 33.0 33.4 1.8
50

V-200

V-200
32.2 24.0 69.0 38.0 31.0 2.0
50

V-250

V-250
37.5 26.5 75.0 42.0 33.0 2.0
50

V-325

V-325
37.5 30.0 75.0 42.0 33.0 2.0
25

V-400

V-400
45.1 37.5 83.0 43.0 40.0 2.0
25

V-500

V-500
48.2 40.2 85.0 43.0 42.0 2.0
25

V-630

V-630
53.8 45.2 93.0 48.0 45.0 2.0
25
